iFlight XING2 1404 FPV Motor 3000kV/3800kV/4600Kv
iFlight XING2 motors offer the fastest response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
$29.99
Description
The smooth, reliable and powerful iFlight XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you’ve just seen on your original XING series are still inbuilt in a new shape and design!
Features:
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
Specification:
- KV: 3000KV / 3800KV / 4600KV
- Weight(included wire): 9.1g
- Dimension: φ19.9*13.5mm
- Interphase Resistance: 0.309Ω / 0.220Ω / 0.159Ω
- Input Volts: 3S-4S
- Peak Current: 13.8A / 15.84A / 17.99A
- Max Watt: 220.8W / 253.4W / 287.8W
- Mounting Holes: 9*9 φ2mm
- Rotor Specifications: Unibell
- Lead: 120mm/26AWG
- Magnet: N52H Curved
- Configuration: 9N12P
- Bearing Type: NSK
- Winding: Single Strand copper winding
Package includes:
- 1 x XING2 1404 Motor Unibell
- 4 x M2x7 mounting screws

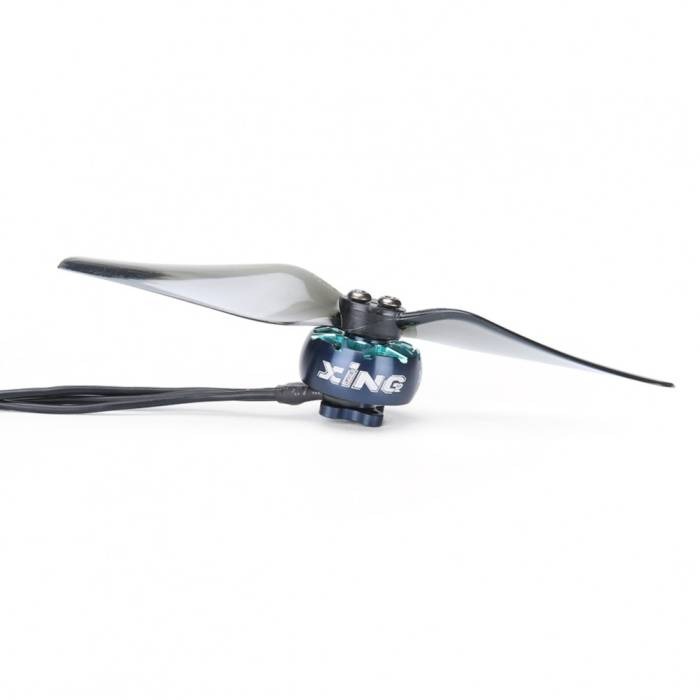

NOTE: propeller is not included.
